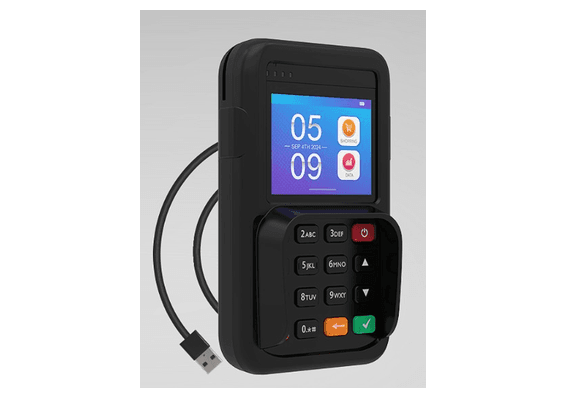

dspread QPOS Plus PINPad

PINPad QPOS Plus PINPad Secure Your Transactions with Every Key Press. Practical Security at Your Fingertips.

Dspread Small but Mighty

118mm x 68mm x 17mm, lightweight at 137g, compact for flexible deployment in all payment scenarios.

Small but Mighty Clear Visual Display

2.4-inch 320*240 TFT display delivers sharp interface and intuitive payment interaction

Clear Visual Display All-in-One Payment Support

Chip, swipe, tap—effortless payments with magstripe, EMV chip, and NFC contactless.

All-in-One Payment Support Secure & Certified Transactions

PCI PTS 6.x & EMV certified, ensuring safe and encrypted payments.

Secure & Certified Transactions Stylish Customization

Choose a color, showcase your brand, and make a statement with a sleek, personalized design.

Stylish Customization Convenient Connectivity

Type-C USB port for easy plug-and-play, stable data transmission, compatible with all POS equipment.

Convenient Connectivity Expanded Highlights Compact and Lightweight 118mm x 68mm x 17mm, lightweight at 137g, compact for flexible deployment in all payment scenarios.

CompactandLightweight Versatile Payment Acceptance Supports magstripe, EMV chip, and NFC contactless payments, providing maximum flexibility for businesses of all sizes.

3 in 1 Versatile Payment Acceptance Intuitive User Experience 2.4-inch 320*240 TFT display delivers sharp interface and intuitive payment interaction

Intuitive User ExperienceIntuitive User Experience Seamless Connectivity USB

Type-C USB port for easy plug-and-play, stable data transmission, compatible with all POS equipment

Seamless Connectivity Tailored for Your Brand Customize the device with a color that represents your brand, ensuring a professional and recognizable look.

Brand Your Device Payment Methods NFC Contactless ApplePAY Magnetic Stripe EMV Chip & PIN Technical Specifications OS Linux

Processor ARM Cortex-A7 Dual Core 1.0 GHz

Memory 128MB RAM, 128M Flash

Display 2.4" 320 x 240 Pixels TFT Display

Indicator LED status indicator & NFC LED indicator

Contactless Card Reader EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare

Magnetic Card Reader Triple track, conforming to ISO 7810/7811/7813, Bi-directional swiping

EMV Card Reader EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C

Audio Built-in buzzer

Keys / Buttons 16 Keys: 0~9 | 5 Function Keys | 1 Power ON / OFF

Peripheral Ports Type-C USB

Battery 3.7V/750mAh

Adapter/Power Supply 5V DC, 1A

Dimensions 118mm x 68mm x 17mm

137g (Including Battery)

Environmental Conditions Operating temperature: 0°C~45°C

Storage temperature: -20°C~60°C

Relative humidity: 5%~95% (Non-condensing)

Certifcations Certifcations PCI PTS 6.x SRED,

EMV L1&L2, Contactless L1,

Visa Paywave, MasterCard Paypass,

Amex Expresspay, Discover D-PAS,

Rupay qSPARC, UnionPay QUICS, PURE,

PCI PIN Security, MasterCard TQM,

CE, FCC, RoHS, WEEE

Standard Accessories 1 USB cable
