Product Overview

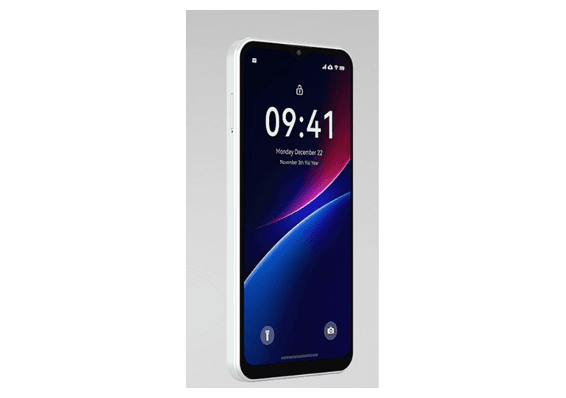

F6 All You Need for Tap-to-Pay. Software-driven flexibility at your fingertips.

Dspread High-Definition Display

720*1600 HD screen ensures sharp visuals and smooth user interaction.

High-Definition Display Robust Battery

5000mAh battery powers full-day use without interruption.

Robust Battery Powerful Platform

Powerful Platform Enhanced Memory Capacity

4GB RAM and 64GB storage offer reliable multitasking and performance.

Enhanced Memory Capacity Powerful Performance

8-core CPU ensures quick and efficient transactions.

Powerful Performance Integrated Camera

13M AF or 5M FF camera allows quick scanning of barcodes and QR codes.

Integrated Camera GMS Certification

Officially certified by Google Mobile Services, ensuring seamless access to trusted apps and reliable performance.

GMS Certification Expanded Highlights Expanded Touch-Screen Display 720*1600 TFT IPS Display brings unparalleled clarity and comfort to your interactions, enhancing your visual experience.

ExpandedTouch-ScreenDisplay Robust Battery The impressive 5000mAh 3.8v battery extends the workday duration.

5000mAhRobust BatteryRobust Battery Amplified Memory Options 4GB

RAM

64GB

FLASH

Amplified Memory Options Powerful Performance 8-core processor enables fast transaction handling and improved productivity.

Smooth & high energy Integrated Camera 13M AF or 5M FF camera for quick barcode and QR code scanning, streamlining

Integrated Camera Enhanced Anti-Drop Protection Enhanced durability for withstanding drops up to 1 meter.

Enhanced Anti-Drop Protection

Payment Methods NFC Contactless Apple Pay Barcode Scan QR Code Scan Technical Specifications OS Android 16

Processor 2*A75@2.0GHz+6*A55@1.70 GHz

Memory 4GB RAM, 64GB Flash

Display 6.517" 720*1600 TFT IPS Display

Capacitive Touchscreen

Communications 4G/3G/2G

WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP

Bluetooth®5.0

Satellite Positioning GPS | A-GPS | GLONASS | BEIDOU｜Galileo

Contactless Card Reader EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica

Camera Front Camera: 5M FF

Rear Camera: 13M AF

Audio 1 Mic, 1 Speaker, 1 Receiver, 1 Jack

Keys / Buttons 3 Keys: Power ON/OFF | Volume+ /Volume-

Peripheral Ports 1 Type-C (OTG)

2 Nano SIM or (1 Nano SIM + 1 microSD)

Battery 3.8V/5000mAh

Adapter/Power Supply Input: 100-240V AC, 50Hz/60Hz

Output: 5.0V DC, 2.0A

Dimensions 164.9mm x 76.1mm x 9mm, 195g

Environmental Conditions Operating temperature: 0°C~45°C

Storage temperature: -20°C~60°C

Relative humidity: 5%~95% (Non-condensing)

Certifcations Certifcations GMS, CE, FCC, RoHS, WEEE

IMDA, NBTC, NTC, SIRIM, MIC, JATE

Standard Accessories 1 USB cable

Cloud Services TMS The first choice for overseas payment, efficient terminal management system.

LEARN MORE TMS KMS ensures secure, encrypted transactions with seamless cloud-based key management.

LEARN MORE KMS Related Solutions Floral shop

Restaurant

Floral shop At the floral shop, F6 enables swift and secure payments directly at the consultation counter or pop-up market stand. It effortlessly handles custom orders and split payments, while its compact, durable design keeps transactions seamless from the first bouquet to the last.

Restaurant

Floral shop

Restaurant

Accessories USB Cable

dspread F6

Name: dspread F6
Brand: DSPREAD
SKU: P-434256

Brand: DSPREAD

SKU: P-434256

F6 All You Need for Tap-to-Pay. Software-driven flexibility at your fingertips. Dspread High-Definition Display 720*1600 HD screen ensures sharp visuals and smooth user interacti…

Get a Quote

Request Pricing

Tailored volume quotes · Excl. VAT

In Stock

Ships within 1–2 business days

Quantity

Need expert advice?

Talk to our product specialists for the best solution for your business.

Product Overview

F6 All You Need for Tap-to-Pay. Software-driven flexibility at your fingertips.

Dspread High-Definition Display

720*1600 HD screen ensures sharp visuals and smooth user interaction.

High-Definition Display Robust Battery

5000mAh battery powers full-day use without interruption.

Robust Battery Powerful Platform

Powerful Platform Enhanced Memory Capacity

4GB RAM and 64GB storage offer reliable multitasking and performance.

Enhanced Memory Capacity Powerful Performance

8-core CPU ensures quick and efficient transactions.

Powerful Performance Integrated Camera

13M AF or 5M FF camera allows quick scanning of barcodes and QR codes.

Integrated Camera GMS Certification

Officially certified by Google Mobile Services, ensuring seamless access to trusted apps and reliable performance.

GMS Certification Expanded Highlights Expanded Touch-Screen Display 720*1600 TFT IPS Display brings unparalleled clarity and comfort to your interactions, enhancing your visual experience.

ExpandedTouch-ScreenDisplay Robust Battery The impressive 5000mAh 3.8v battery extends the workday duration.

5000mAhRobust BatteryRobust Battery Amplified Memory Options 4GB

RAM

64GB

FLASH

Amplified Memory Options Powerful Performance 8-core processor enables fast transaction handling and improved productivity.

Smooth & high energy Integrated Camera 13M AF or 5M FF camera for quick barcode and QR code scanning, streamlining

Integrated Camera Enhanced Anti-Drop Protection Enhanced durability for withstanding drops up to 1 meter.

Enhanced Anti-Drop Protection

Payment Methods NFC Contactless Apple Pay Barcode Scan QR Code Scan Technical Specifications OS Android 16

Processor 2*A75@2.0GHz+6*A55@1.70 GHz

Memory 4GB RAM, 64GB Flash

Display 6.517" 720*1600 TFT IPS Display

Capacitive Touchscreen

Communications 4G/3G/2G

WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP

Bluetooth®5.0

Satellite Positioning GPS | A-GPS | GLONASS | BEIDOU｜Galileo

Contactless Card Reader EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica

Camera Front Camera: 5M FF

Rear Camera: 13M AF

Audio 1 Mic, 1 Speaker, 1 Receiver, 1 Jack

Keys / Buttons 3 Keys: Power ON/OFF | Volume+ /Volume-

Peripheral Ports 1 Type-C (OTG)

2 Nano SIM or (1 Nano SIM + 1 microSD)

Battery 3.8V/5000mAh

Adapter/Power Supply Input: 100-240V AC, 50Hz/60Hz

Output: 5.0V DC, 2.0A

Dimensions 164.9mm x 76.1mm x 9mm, 195g

Environmental Conditions Operating temperature: 0°C~45°C

Storage temperature: -20°C~60°C

Relative humidity: 5%~95% (Non-condensing)

Certifcations Certifcations GMS, CE, FCC, RoHS, WEEE

IMDA, NBTC, NTC, SIRIM, MIC, JATE

Standard Accessories 1 USB cable

Cloud Services TMS The first choice for overseas payment, efficient terminal management system.

LEARN MORE TMS KMS ensures secure, encrypted transactions with seamless cloud-based key management.

LEARN MORE KMS Related Solutions Floral shop

Restaurant

Floral shop

Restaurant

Accessories USB Cable

Explore More Products

Palm Pay

Payment Hardware

Arvion

Arvion PalmPay Terminal PD1-W

PalmPay Terminal PD1-W Smart POS terminal supporting palm-based payments. Delivers fully contactless transactions in under one second. Palm Scan Users simply hover their palm over the sensor — first to capture their unique vein pattern during registration, and later to authenticate securely, touchlessly, and hygienically. Biometric Match Arvion PalmPay instantly matches the scanned palm to the user’s encrypted biometric data, ensuring accurate and fraud-resistant identification. Instant Payment Once verified, the payment is processed within seconds — no wallet, phone, or card required. Just your palm. Use Cases Retail & POSEmpower retail and POS environments with touchless palm-based payment technology. Simplify ATM and branch authentication with seamless and secure palm biometrics. Use ARVION for touchless entry at turnstiles, stations, and onboard systems — ticketless and instant. Deliver secure access, staff ID, and citizen verification across government, healthcare, and education.

Payment Hardware

Arvion

Arvion PalmPay Sensor arvion

PalmPay Sensor. External biometric palm scanner for integration with existing POS terminals. Palm Scan Users simply hover their palm over the sensor — first to capture their unique vein pattern during registration, and later to authenticate securely, touchlessly, and hygienically. Biometric Match Arvion PalmPay instantly matches the scanned palm to the user’s encrypted biometric data, ensuring accurate and fraud-resistant identification. Instant Payment Once verified, the payment is processed within seconds — no wallet, phone, or card required. Just your palm. Use Cases Retail & POSEmpower retail and POS environments with touchless palm-based payment technology. Simplify ATM and branch authentication with seamless and secure palm biometrics. Use ARVION for touchless entry at turnstiles, stations, and onboard systems — ticketless and instant. Deliver secure access, staff ID, and citizen verification across government, healthcare, and education.

Payment Hardware

Arvion

Arvion PalmPay Terminal PD1-A

Smart POS terminal supporting palm-based payments. Delivers fully contactless transactions in under one second.PalmPay Terminal PD1-WSmart POS terminal with a larger display and a classic rectangular form factor, designed for seamless palm-based payments. Palm Scan Users simply hover their palm over the sensor — first to capture their unique vein pattern during registration, and later to authenticate securely, touchlessly, and hygienically. Biometric Match Arvion PalmPay instantly matches the scanned palm to the user’s encrypted biometric data, ensuring accurate and fraud-resistant identification. Instant Payment Once verified, the payment is processed within seconds — no wallet, phone, or card required. Just your palm. Use Cases Retail & POSEmpower retail and POS environments with touchless palm-based payment technology. Simplify ATM and branch authentication with seamless and secure palm biometrics. Use ARVION for touchless entry at turnstiles, stations, and onboard systems — ticketless and instant. Deliver secure access, staff ID, and citizen verification across government, healthcare, and education.

Payment Hardware

DSPREAD

dspread QPOS Plus PINPad

PINPad QPOS Plus PINPad Secure Your Transactions with Every Key Press. Practical Security at Your Fingertips. Dspread Small but Mighty 118mm x 68mm x 17mm, lightweight at 137g, compact for flexible deployment in all payment scenarios. Small but Mighty Clear Visual Display 2.4-inch 320*240 TFT display delivers sharp interface and intuitive payment interaction Clear Visual Display All-in-One Payment Support Chip, swipe, tap—effortless payments with magstripe, EMV chip, and NFC contactless. All-in-One Payment Support Secure & Certified Transactions PCI PTS 6.x & EMV certified, ensuring safe and encrypted payments. Secure & Certified Transactions Stylish Customization Choose a color, showcase your brand, and make a statement with a sleek, personalized design. Stylish Customization Convenient Connectivity Type-C USB port for easy plug-and-play, stable data transmission, compatible with all POS equipment. Convenient Connectivity Expanded Highlights Compact and Lightweight 118mm x 68mm x 17mm, lightweight at 137g, compact for flexible deployment in all payment scenarios. CompactandLightweight Versatile Payment Acceptance Supports magstripe, EMV chip, and NFC contactless payments, providing maximum flexibility for businesses of all sizes. 3 in 1 Versatile Payment Acceptance Intuitive User Experience 2.4-inch 320*240 TFT display delivers sharp interface and intuitive payment interaction Intuitive User ExperienceIntuitive User Experience Seamless Connectivity USB Type-C USB port for easy plug-and-play, stable data transmission, compatible with all POS equipment Seamless Connectivity Tailored for Your Brand Customize the device with a color that represents your brand, ensuring a professional and recognizable look. Brand Your Device Payment Methods NFC Contactless ApplePAY Magnetic Stripe EMV Chip & PIN Technical Specifications OS Linux Processor ARM Cortex-A7 Dual Core 1.0 GHz Memory 128MB RAM, 128M Flash Display 2.4" 320 x 240 Pixels TFT Display Indicator LED status indicator & NFC LED indicator Contactless Card Reader EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare Magnetic Card Reader Triple track, conforming to ISO 7810/7811/7813, Bi-directional swiping EMV Card Reader EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C Audio Built-in buzzer Keys / Buttons 16 Keys: 0~9 | 5 Function Keys | 1 Power ON / OFF Peripheral Ports Type-C USB Battery 3.7V/750mAh Adapter/Power Supply 5V DC, 1A Dimensions 118mm x 68mm x 17mm 137g (Including Battery) Environmental Conditions Operating temperature: 0°C~45°C Storage temperature: -20°C~60°C Relative humidity: 5%~95% (Non-condensing) Certifcations Certifcations PCI PTS 6.x SRED, EMV L1&L2, Contactless L1, Visa Paywave, MasterCard Paypass, Amex Expresspay, Discover D-PAS, Rupay qSPARC, UnionPay QUICS, PURE, PCI PIN Security, MasterCard TQM, CE, FCC, RoHS, WEEE Standard Accessories 1 USB cable QPOS Plus Linux Pinpad.pdf 1729.87KB Cloud Services TMS The first choice for overseas payment, efficient terminal management system. LEARN MORE TMS KMS ensures secure, encrypted transactions with seamless cloud-based key management. LEARN MORE KMS Related Solutions Coffee Shop & Casual Dining Hotel Front Desk & Service Supermarket Checkout Coffee Shop & Casual Dining At coffee shops and casual dining outlets, QPOS Plus PINpad delivers quick, secure payments with NFC, chip card support. Its small footprint and user-friendly interface ensure smooth order checkout with reliable encryption and transaction protection. Hotel Front Desk & Service Supermarket Checkout Coffee Shop & Casual Dining Hotel Front Desk & Service Supermarket Checkout Accessories Stickers Lanyard Table Stand

Payment Hardware

DSPREAD

dspread DS10

Sound Box DS10 Amplify Your Space with Smart Sound. Compact, Powerful, and Always On. Dspread Powerful Audio Output 4Ω 3W speaker delivers ≥110dB volume, ensuring clear and immersive sound quality. Powerful Audio Output Optional LCD Display 3.5" TFT screen (optional) for clear interface navigation. Optional LCD Display ARM Cortex-R5 Processor Powered by a 614 MHz Cortex-R5 processor for efficient performance. ARM Cortex-R5 Processor Long Battery Life 2600mAh battery allows prolonged usage. Long Battery Life USB Type-C Charging Supports USB Type-C for faster and more convenient charging. USB Type-C Charging Multi-LED Indicators Red, Blue, and Green LED indicators for device status feedback. Multi-LED Indicators Expanded Highlights High-Definition Sound Output 4Ω 3W speaker delivers ≥110dB volume, ensuring clear and immersive sound quality. High-Definition Sound Output Optional Interactive Display and Dynamic QR Code Optional display enhances user interaction with a clear interface and supports dynamic QR codes for secure and efficient transactions. Optional Interactive Displayand Dynamic QR Code Extended Usage Time 2600mAh battery supports long hours of uninterrupted use, reducing the need for frequent charging. 2600mAHExtended Usage TimeExtended Usage Time Enhanced Anti-Drop Protection Enhanced durability for withstanding drops up to 1 meter. Enhanced Anti-Drop Protection Technical Specifications Processor ARM Cortex R5, 614 MHz Memory 8M RAM, 8M Flash | Extemal Storage: 8M Flash (DS10-IN) 16M RAM, 16M Flash (DS10-LA) Display 3.5" 240*320 TFT Display (Optional) Communications 4G/2G WiFi: 802.11 b/g/n, 2.4GHz (optional) Audio 1 Speaker 4Ω 3W, 10cm ≥110db, 1m ≥80db Keys / Buttons 5 Keys: Power button | Function button | Vol+ | Vol- | Reset slot Peripheral Ports Peripheral Ports 1 Type-C, 1 Nano SIM Battery 3.7V/2600mAh Dimensions 115mm x 65mm x 68mm Environmental Conditions Operating temperature: 0°C~45°C Storage temperature: -20°C~60°C Relative humidity: 5%~95% (Non-condensing) Certifcations UN 38.3 Standard Accessories 1 USB cable Related Solutions Fabric & Apparel Store Fruit & Vegetable Stall Market Stall Convenience Store In convenience stores, DS10 cloud speaker delivers clear audio notifications for transactions, while the optional display screen with a QR code enhances customer engagement and payment processing. Fabric & Apparel Store Fruit & Vegetable Stall Market Stall Convenience Store Fabric & Apparel Store Fruit & Vegetable Stall Accessories USB Cable

Payment Hardware

DSPREAD

dspread D50U

D50U Unattended, Yet Fully in Control. Power, ports and protection - fully integrated. Dspread High-Definition Display 6.56" HD screen ensures sharp visuals and smooth user interaction. High-Definition Display Seamless Self-Service Operation The base ensures secure attachment and continuous power supply for smooth self-service use. Seamless Self-Service Operation Powerful Platform Powered by Android 15, delivering powerful performance. Powerful Platform Enhanced Memory Capacity Up to 4GB RAM and 64GB storage offer reliable multitasking and performance. Enhanced Memory Capacity Powerful Performance 8-core CPU ensures quick and efficient transactions. Powerful Performance Integrated Camera The 5MP AF camera enables fast scanning of barcodes and QR codes. Integrated Camera Expanded Highlights Expanded Touch-Screen Display 6.56" 720*1600 TFT IPS Display brings unparalleled clarity and comfort to your interactions, enhancing your visual experience. ExpandedTouch-ScreenDisplay Secure Unattended Base A stable, lockable base that powers and protects the device for unattended operation 24/7. Secure Unattended Base Amplified Memory Options 3GB RAM + 32GB ROM Standard 4GB RAM + 64GB ROM Optional Amplified Memory Options Powerful Performance 8-core processor enables fast transaction handling and improved productivity. Smooth & high energy Integrated Camera 5MP AF camera for quick barcode and QR code scanning, streamlining 5MPIntegrated Camera Payment Methods NFC Contactless Apple Pay EMV Chip & PIN Barcode Scan QR Code Scan Technical Specifications OS Android 15 Processor 2*A75@2.0GHz+6*A55@1.8GHz Memory 3GB RAM, 32GB Flash 4GB RAM, 64GB Flash (Optional) Display Display 6.56" 720*1600 TFT IPS Display Capacitive Touchscreen Communications 4G/3G/2G WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP Bluetooth® 5.0 Satellite Positioning GPS | A-GPS | GLONASS | BEIDOU Contactless Card Reader EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare EMV Card Reader EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C Camera Front Camera: 5MP AF Rear Camera: N/A Audio 1 Speaker Keys / Buttons 2 Keys: Power ON/OFF | Volume Peripheral Ports 1 MDB,1 RJ45,1 RS232,1 Type-A,2 Type-C 1*Nano SlM1 +1*SAM Adapter/Power Supply Input: 100-240V AC,50Hz/60Hz Output: 5.0V DC, 2.0A Dimensions 187.04 x 82.4 x 35.83mm Environmental Conditions Operating temperature: -20°C~55°C Storage temperature: -40°C~75°C Relative humidity: 10%~90% (Non-condensing) Certifcations PCI PTS 6.x with SRED EMV L1&L2, Contactless L1 Visa Paywave, MasterCard Paypass, Amex Expresspay, MIR, Discover D-PAS, PCI PIN Security, MasterCard TQM CE, FCC, RoHS Standard Accessories 1 Power adapter, 1 USB cable

Payment Hardware

DSPREAD

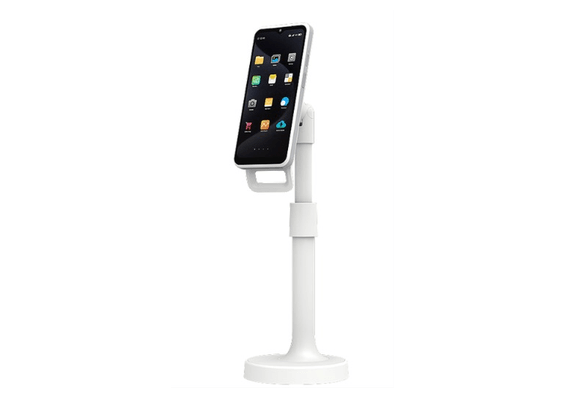

dspread D50Bio
