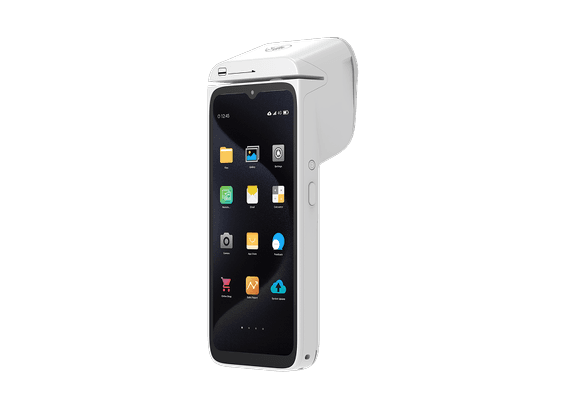

DSPREAD D80

Android Smart POS.

D80 A Touch of Tradition, A Touch of Modernity. Empowering Payments with Style and Efficiency.

Request a Quote Dspread Flexible Display Options

Opt for the standalone touchscreen for mobility, or the keyboard-integrated display for intensive data entry scenarios.

Flexible Display Options High-Speed Printing

D80's 60mm/s thermal printer for quick and reliable receipt printing.

High-Speed Printing Long-Lasting Battery

5000mAh battery for extended use without frequent recharging.

Long-Lasting Battery Expanded Memory Capacity

Up to 3GB RAM + 32GB Flash for smoother multitasking and performance.

Expanded Memory Capacity Powerful Performance

Quad-core processor delivers fast, efficient transaction handling.

Powerful Performance Dual Camera

2MP rear + 0.3MP front camera for barcode scanning and identity verification.

Dual Camera Expanded Highlights Versatile Display Choices Choose between standalone touchscreen or keyboard-integrated display models to match your specific workflow requirements.

Versatile Display Choices High-Speed Printing Boost efficiency with a rapid 60mm/s thermal printer, ensuring smooth and reliable receipt printing for every transaction.

60mm/s High-Speed Printing Long-Lasting Battery Stay powered throughout the day with a robust 5000mAh battery, minimizing downtime and keeping your business running smoothly.

5000mAhLong-Lasting BatteryLong-Lasting Battery Expanded Memory Capacity 2GB RAM + 32GB FLASH

Standard

3GB RAM + 32GB FLASH

Optional

Expanded Memory Capacity Powerful Performance High-Speed Processing Dual Camera System Enhance functionality with dual cameras: 2MP rear for barcode scanning and 0.3MP front for identity verification—streamlining operations effortlessly.

2MPDual Camera System Rugged Drop Protection Built tough to withstand drops up to 1 meter without a hitch.

Rugged Drop Protection

Payment Methods NFC Contactless Apple Pay Magnetic Stripe EMV Chip & PIN Barcode Scan QR Code Scan

Technical Specifications OS Android 14

Processor Application CPU: 8*A53（4*A53@2.0GHz+4*A53@1.5GHz）

Security CPU: 32-bit ARM 192MHz

Memory 2GB RAM, 32GB Flash

3GB RAM, 32GB Flash(Optional)

Display D80:

6.5" 720*1600 TFT IPS Display

Capacitive Touchscreen

D80K:

5" 480*854 TFT Display

Capacitive Touchscreen

Communications 4G/3G/2G

WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP

Satellite Positioning GPS | A-GPS | GALILEO | BEIDOU

Contactless Card Reader EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare

EMV Card Reader EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C

Magnetic Card Reader Triple track, conforming to ISO 7810/7811/7813, Bi-directional swiping

Camera D80:

Front Camera: 2M FF D80K:

Front Camera: 0.3M FF

Audio Speaker

Keys / Buttons D80:

2 Keys: 1 Power ON/OFF | 1 Volume

D80K:

17 Keys: 0~9 | 5 Function Keys | 1 Power ON / OFF | 1 Volume

Printer Thermal printer

Paper Roll Width: 58mm

Paper Roll Diameter: 40mm

Peripheral Ports 1 Type-C (OTG), 2 PIN POGO PIN

1 Micro SIM (option ESIM) + 1 Mini SIM (option SAM) + 1 Mini SAM

1 Micro SD Card Slot, Supports Up To 128 GB

Battery 3.7V/5000mAh

Adapter/Power Supply Input: 100-240V AC, 50Hz/60Hz

Output: 5.0V DC, 2.0A

Dimensions 195mm x 78.5mm x 50.8mm

448.5g (Including battery & thermal paper)

Environmental Conditions Operating temperature: 0°C~45°C

Storage temperature: -20°C~60°C

Relative humidity: 5%~95% (Non-condensing)

Certifications PCI PTS 6.x with SRED

EMV L1&L2, Contactless L1

Visa PayWave, MasterCard PayPass, Amex Expressway, Discover D-PAS

PCI PIN Security, MasterCard TQM

CE, FCC, RoHS
